Dyn_TF-480 Tour Hybride CNC web

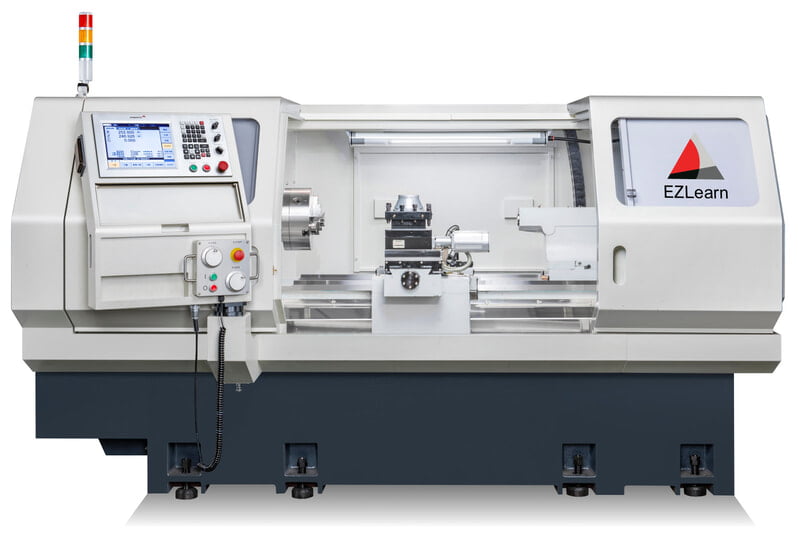

Tour hybride CNC EZLearn par Dynapath Modèle: TF-480 SWING OVER BED: 550 mm (21.65") SWING OVER CROSS SLIDE: 265 mm (10.43") DISTANCE BETWEEN CENTERS: 1250 mm (49.21") WIDTH OF BED: 380mm (14.96") SPINDLE SPEED, RATING: 10 - 2500 RPM, 7.5 kW (10 HP) SPINDLE TAPER / BORE / NOSE: MT6 / Φ79 mm (3.110") / A2-6 RAPID X/Z: 5 / 5 m/min (197 / 197 IPM) TORQUE X/Z: 9 / 12 N-m (6.64 / 8.85 ft-lb) TAILSTOCK QUILL SIZE: Φ52 mm (2.17") / MT4 TAILSTOCK QUILL TRAVEL: 140 mm (5.51") REPEAT ACCURACY X/Z: 0.005 / 0.006 mm (0.00020" / 0.00024") POSITION ACCURACY X/Z: 0.010 mm/0.016 mm (0.00039" / 0.00063") TURNING ACCURACY: 0.003 mm (0.00012") TURNING UNIFORMITY: 0.006 mm/100 mm (0.00024" / 3.94") DIMENSIONS: 319 x 188 x 180 cm (125" x 74" x 70.8") TOTAL WEIGHT: 2360 kg AIR REQUIREMENTS: 6 kgf/cm2 (85 PSI), 0.03 m3/min (1 CFM) Fully Enclosed with Safety Windows LUBE & COOLANT: Auto-Lubrication, Auto-Air/Flood Coolant CONTROL SYSTEM: DynaPath WinDelta-T CNC System CONSOLE: 12.1" Touchscreen LCD D1 Console HANDWHEELS: Remote Pendant with 2x Electronic Handwheels PROGRAMMING FEATURES: Conversational + DXF + ISO/EIA G-Code CE Safety Module & Interlocks CE Electrical Wiring & Cabinet & Components 600V to 220V 7 KVA 3-Phase Including options: Automatic Electric 4-Station Tool Turret (25mm Square) 10" 3-Jaw Self-Centering Steel Body #3DAKT-10, 3500 RPM Max Soft Jaws, 1set/3pc JAW #S009-JWA for #3DAKT-10 Chuck Fixed & travelling steadies Garantie de 1 an sur les pièces. Garantie main-d'œuvre 1 an. Frais de transport du manufacturier et distributeur en surplus.
