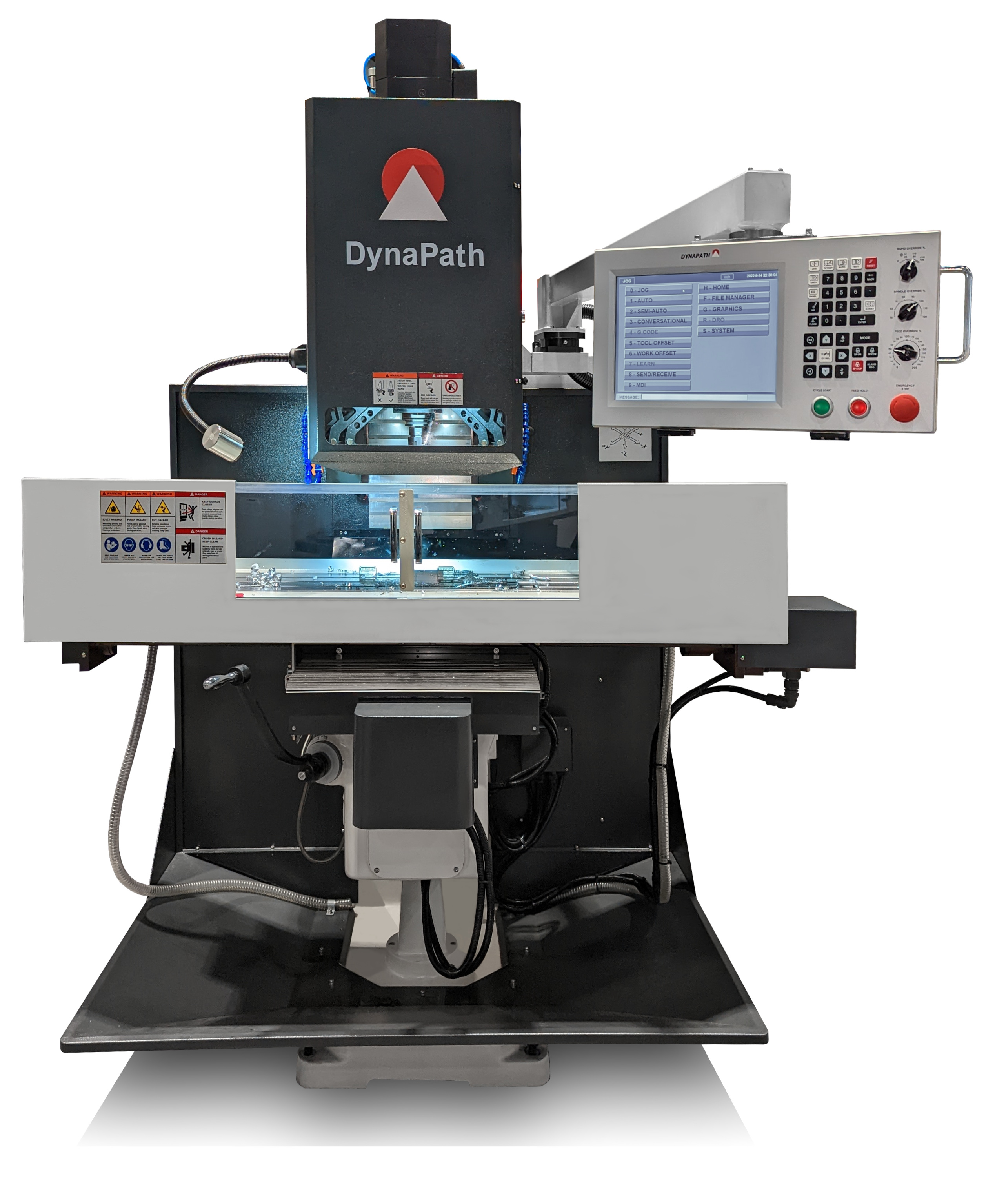

Dyn_VK-4T TYPE Knee Mill w/ ATC 4 stations avec ensemble d'option

VK-4T Knee Mill w/ ATC TRAVEL X/Y/Z: 900 x 340 x 150 mm KNEE TRAVEL (Z-AXIS): 350 mm SPINDLE NOSE TO TABLE (mm): 100-400 mm TOOL TO COLUMN (mm): 360 mm AXIS TYPE X/Y/Z: Dov / Dov / Linear MOTORS X/Y/Z: 0.85/0.85/0.85kW Direct Drive SPINDLE TAPER: CAT40 SPINDLE DIAMETER: 120 mm SPINDLE RPM: 50-6000 RPM SPINDLE MOTOR: 5 HP (3.75kW) Direct Drive SPINDEL RATED TORQUE: 24 N-m TOOL CHANGER: 4 Stations MAX RAPID SPPED X/Y/Z: 6000 mm/min (236 IPM) POSTIONING ACCURACY: 20 um (0.000787") REPEAT ACCURACY: 10 um (0.000394") TABLE SIZE: 1470 x 320 mm TABLE SLOTS x OFFSET x WIDTH: 3 x 65 mm x 16 mm MAX TABLE LOAD: 220 kg MACHINE DIMENSION: 2000 x 1800 x 2300 mm MACHINE WEIGHT: 1800 kg AIR REQUIREMENTS: 6 kg/cm2 (90 psi) CONTROL: DynaPath WinDelta CNC System 15.6" Touchscreen LCD D11 Console: MPG Handwheel + MPG Run Conversational + DXF + ISO/EIA G-Code Rigid Tap + High Speed Machining + Networking CE PACKAGE CE Safety Module & Interlocks CE Electrical Wiring & Cabinet & Components POWER REQUIREMENTS: 4 kVA, 3 Phase, 220V Transformer: 600V to 220V 6 KVA 3-Phase Included option: Independent X, Y axis digital handwheels Power Table Height Elevator Garantie de 1 an sur les pièces & main-d'œuvre
